Full Frame Power, Simplified Installation

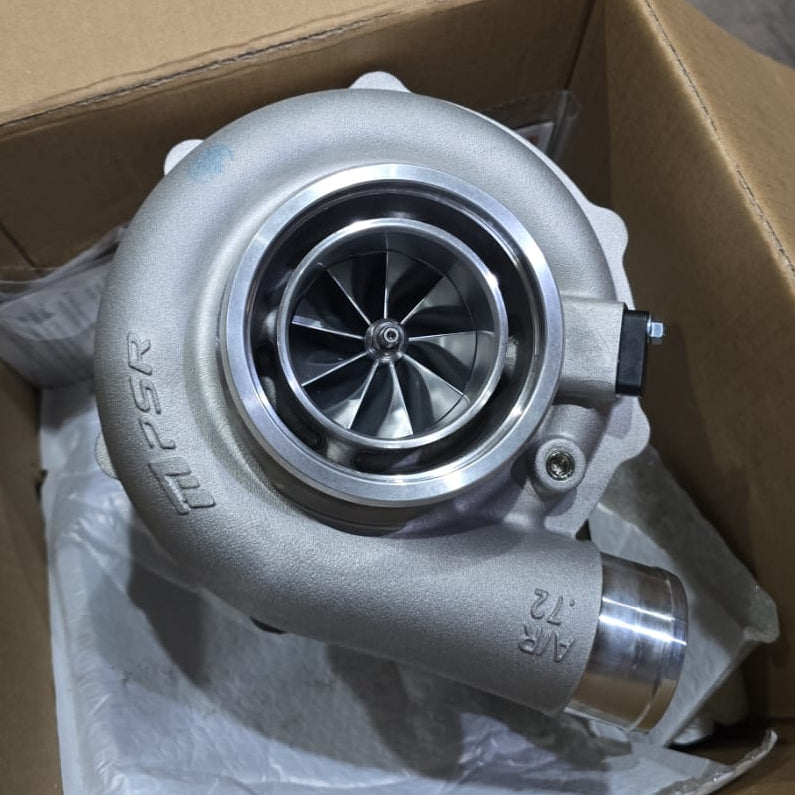

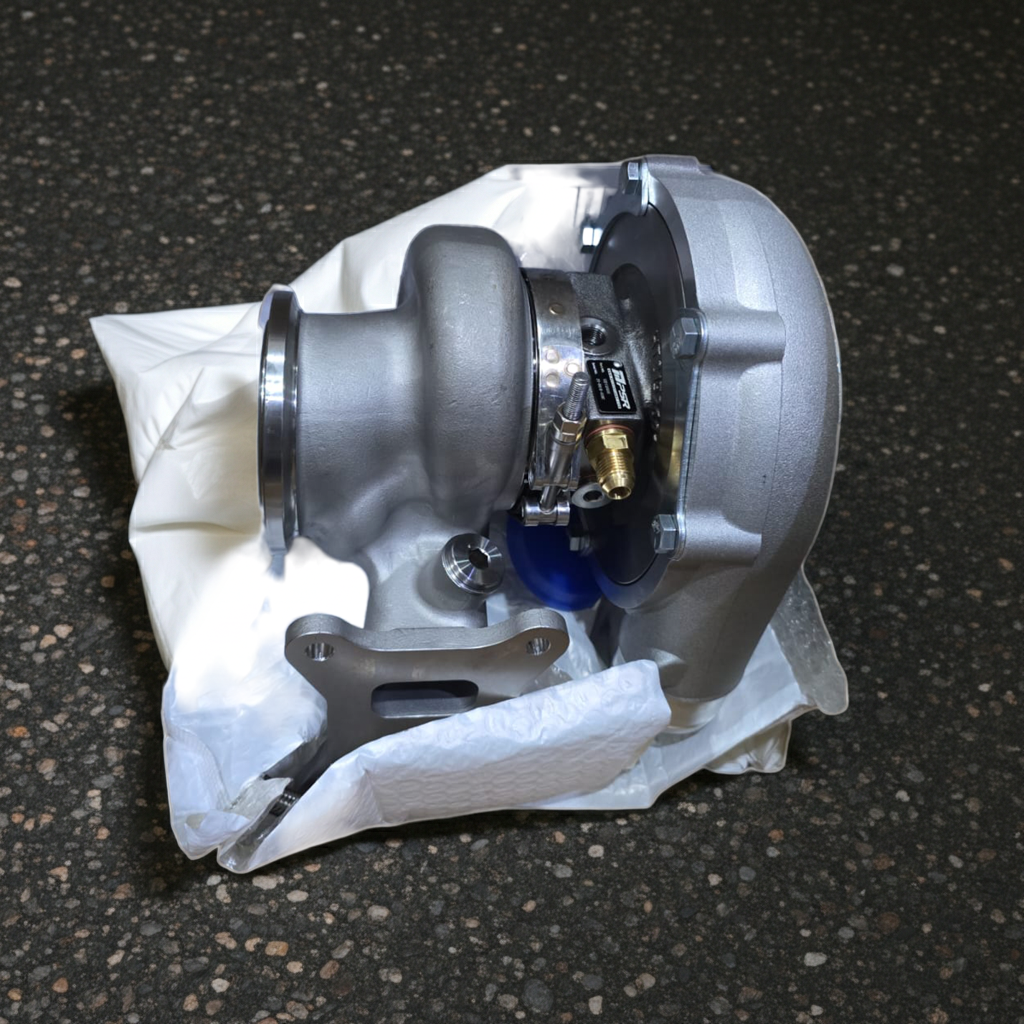

The G30-900 PSR Full Frame Turbo represents the next level in turbo upgrades for the MQB EA888 Gen3 platform. Built on the renowned G30-900 super core manufactured by Pulsar Turbo (PSR), this turbo combines the airflow capacity of a full frame unit with thoughtful integration designed to simplify installation on your vehicle.

Engineered for high-performance applications up to 700+ HP, this turbo is ideal for serious builds seeking real power without compromising reliability.

Technical Specifications

Base	PSR G30-900 Super Core
Compressor Wheel	62mm inducer × 76mm exducer (Billet)
Turbine Wheel	60mm inducer × 55mm exducer
Compressor Inlet	4" Hose
Compressor Outlet	2" Hose
Turbine Housing A/R	0.72
Rotation	Reverse (counter-clockwise)
Center Section (CHRA)	Dual Ball Bearing
Target Power	Up to 700+ HP
Wastegate	Internal (uses OEM actuator)

Why This Turbo?

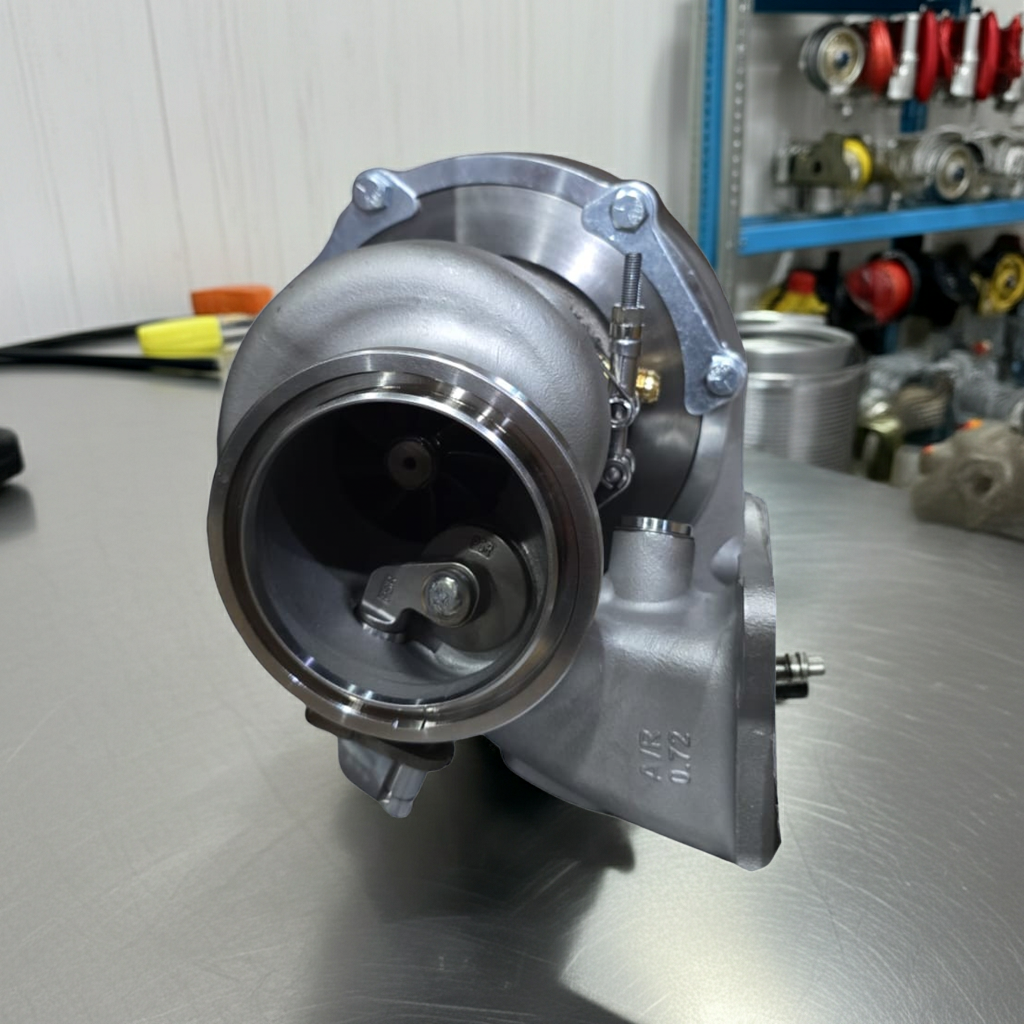

Unlike a traditional full frame kit that requires multiple adapters and extensive modifications, this turbo comes equipped with a PSR 0.72 A/R exhaust housing specifically designed for:

Direct connection to the manifold of the EA888 Gen3 engine — no adapters needed
Compatible with OEM and aftermarket downpipes without modifications
Uses the internal wastegate — no external wastegate required
Oil and coolant lines included for direct connection

What's Included

PSR G30-900 turbo complete with 0.72 A/R turbine housing
Oil feed and return lines
Coolant lines (inlet and outlet)

Additional Parts Required (Local Fabrication)

By utilizing a full frame super core with universal compressor housing, this turbo requires two parts that must be fabricated locally or by a specialized shop:

1. Wastegate Actuator Bracket

The G30-900 compressor housing does not include a mounting point for the vehicle's original wastegate actuator. A support bracket must be fabricated to mount the OEM actuator and connect it to the internal wastegate lever.

We have reference photos of fabricated brackets that we can share to guide the fabrication process.

2. 90° Elbow at Compressor Outlet

The compressor outlet on this turbo is straight (full frame orientation), unlike the OEM turbo which has an integrated 90° turn toward the charge pipe. There are two solutions:

Option A: High-pressure 90° silicone elbow
Option B: Welded or adapted 90° aluminum elbow

Compatibility

Platform	MQB
Engine	EA888 Gen3 (1.8T / 2.0T)
Vehicles	Golf GTI/R Mk7/Mk7.5, Audi S3/A3 8V, TT/TTS 8S, León Cupra, Octavia RS, and more

Recommendations

To get the most out of this turbo, we recommend:

High-flow intercooler
3" or larger downpipe
Upgraded fuel system (LPFP, port injection)
Professional tune/calibration specific to big frame turbo
Upgraded clutch (manual) or TCU tune (DSG)

Questions about installation or the parts to fabricate? Contact us via WhatsApp and we'll send you the necessary references.

Potencia Full Frame, Instalación Simplificada

El Turbo G30-900 PSR Full Frame representa el siguiente nivel en upgrades de turbo para la plataforma MQB EA888 Gen3. Basado en el reconocido super core G30-900 fabricado por Precision Turbo (PSR), este turbo combina la capacidad de flujo de un turbo full frame con una integración pensada para simplificar la instalación en tu vehículo.

Diseñado para aplicaciones de alto rendimiento hasta 700+ HP, este turbo es ideal para builds serios que buscan potencia real sin comprometer la confiabilidad.

Especificaciones Técnicas

Base	PSR G30-900 Super Core
Rueda del Compresor	62mm inducer × 76mm exducer (Billet)
Rueda de Turbina	60mm inducer × 55mm exducer
Entrada del Compresor	4" Manguera
Salida del Compresor	2" Manguera
Housing de Turbina A/R	0.72
Rotación	Reverse (izquierda)
Centro (CHRA)	Dual Ball Bearing
Potencia Objetivo	Hasta 700+ HP
Wastegate	Interno (usa actuador OEM)

¿Por Qué Este Turbo?

A diferencia de un kit full frame tradicional que requiere múltiples adaptadores y modificaciones extensas, este turbo viene equipado con un housing de escape PSR de 0.72 A/R específicamente diseñado para:

Conexión directa al manifold del motor EA888 Gen3 sin adaptadores
Compatible con downpipes OEM y aftermarket sin modificaciones
Utiliza el wastegate interno — no requiere wastegate externo
Líneas de aceite y refrigerante incluidas para conexión directa

¿Qué Incluye el Kit?

Turbo PSR G30-900 completo con housing de turbina 0.72 A/R
Líneas de alimentación y retorno de aceite
Líneas de refrigerante (entrada y salida)

Piezas Adicionales Requeridas (Fabricación Local)

Al utilizar un super core full frame con carcasa de compresor universal, este turbo requiere dos piezas que deben fabricarse localmente o por un taller especializado:

1. Bracket para Actuador del Wastegate

La carcasa del compresor G30-900 no incluye el punto de anclaje para el actuador del wastegate original del vehículo. Es necesario fabricar un bracket de soporte que permita montar el actuador OEM y conectarlo a la palanca del wastegate interno.

Contamos con fotos de referencia de brackets fabricados que podemos compartir para guiar la fabricación.

2. Codo de 90° en la Salida del Compresor

La salida del compresor en este turbo es recta (orientación full frame), a diferencia del turbo OEM que tiene un giro de 90° integrado hacia el charge pipe. Existen dos soluciones:
